Thunder-3NIC-2VM-PVTVIP

This template creates two vThunder instances with HA setup and each vThunder has one management and two data NICs (data-in and data-out). It configures data-in network interface card (NIC) with Private IP on VIP.

High availability can be configured within the same or different availability zone within a same region. If one instance goes down, other instance takes the request without any manual intervention.



For more information, see Create Thunder Virtual Machines.

NOTE:

Use a suitable VM size that supports at least three NICs. For VM sizes, see Supported VM Sizes.

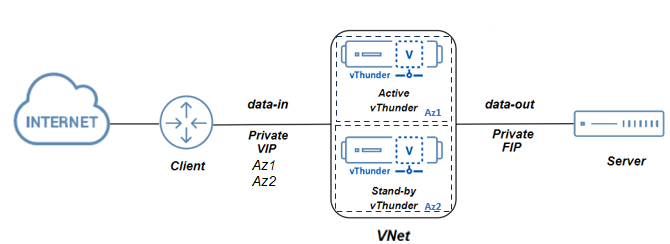

Figure 27 : SLB Thunder ADC in High Availability mode with Private VIP



Additional Thunder configurations are available that can be applied as needed:

• Change Password
• A10 License
• SSL Certificate
• Basic Server Load Balancer
• High Availability



Figure 28 :   SLB Thunder ADC in High Availability mode with Private VIP and Backend Server Autoscale

Following are the Thunder configurations can be applied:

• Change Password
• A10 License
• SSL Certificate
• Server Load Balancer on Backend Autoscale
• High Availability



Various templates are available for different deployment needs.

For more information, see Deployment Templates.
