Renewing Discovered Certificates

To renew the discovered certificate:

1. Open the certificate in the Policy Tree view and click Renew Now.



2. On the confirmation pop-up, click Yes to commence the certificate renewal process.



   The following processes take place in the background:

   1. The Trust Protection Platform creates a private key and generates the certificate signing request (CSR).
   2. The CSR is forwarded to the configured Certificate Authority (CA).
   3. The Trust Protection Platform retrieves the new signed certificate and key from the CA.
   4. The new signed certificate and private key is sent to the A10 device and installed automatically.

3. Verify new certificate installation by checking the certificate information in the A10 interface.

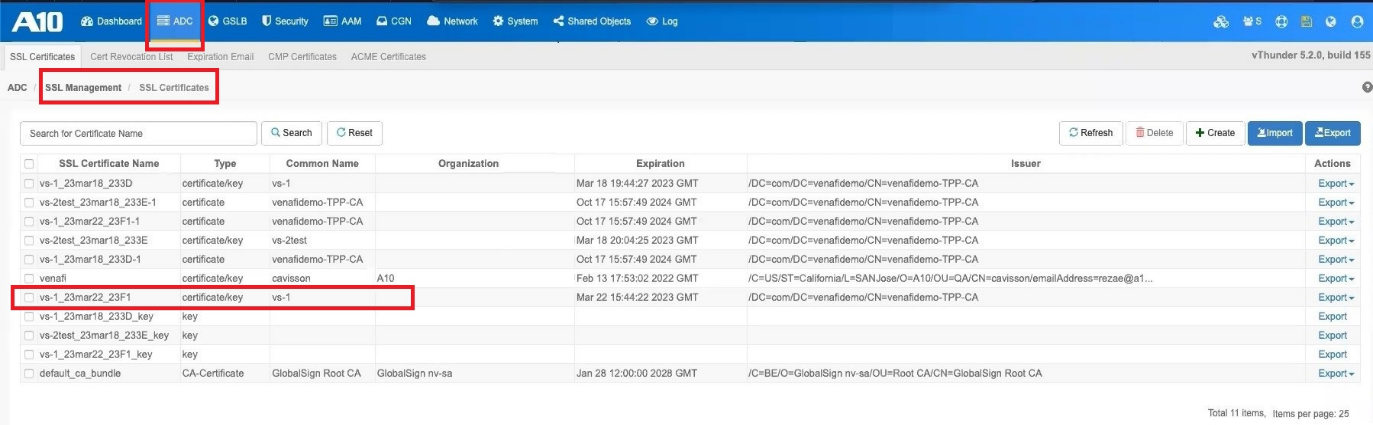

   1. To check the renewed certificate information, navigate to ADC > SSL Management > SSL Certificates.

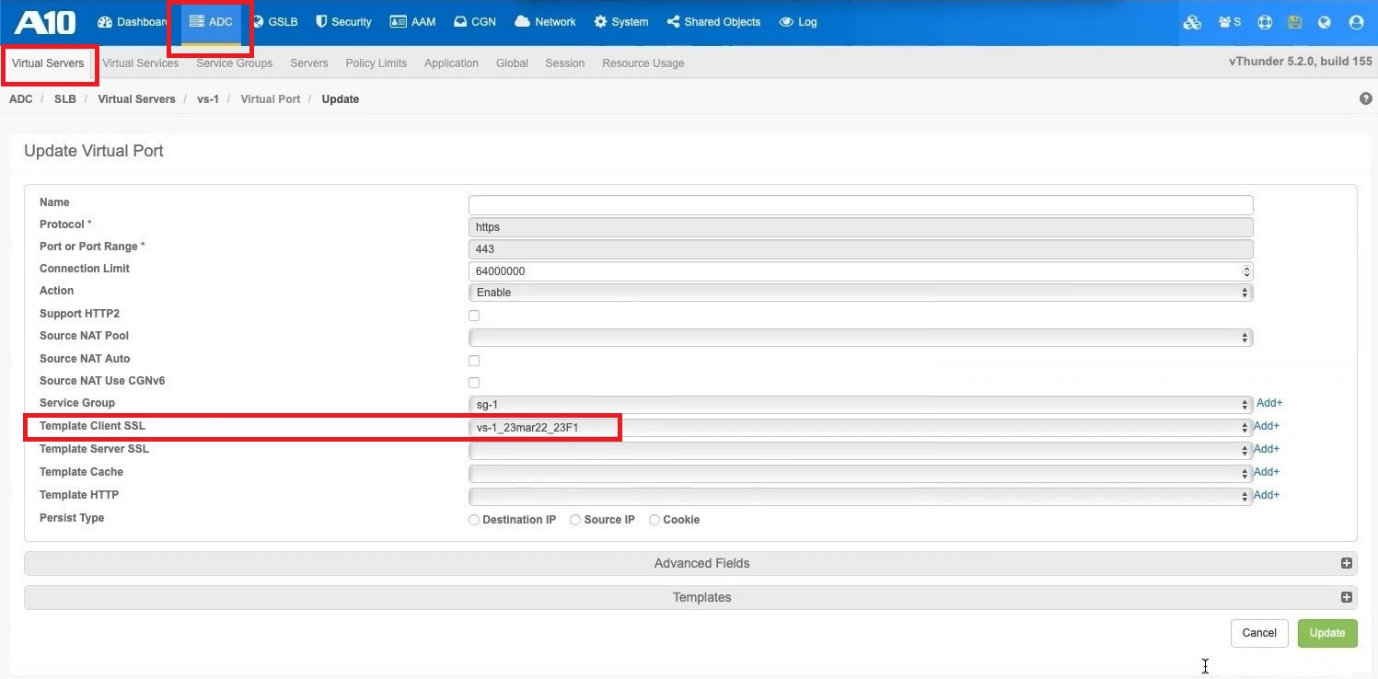

   2. The renewed certificate is also associated with the virtual port configuration replacing the old certificate. To check this config, navigate to ADC > SLB > Virtual Server > Virtual Port > Edit > Template Client SSL.



For more information, see Certificate Renewal.
